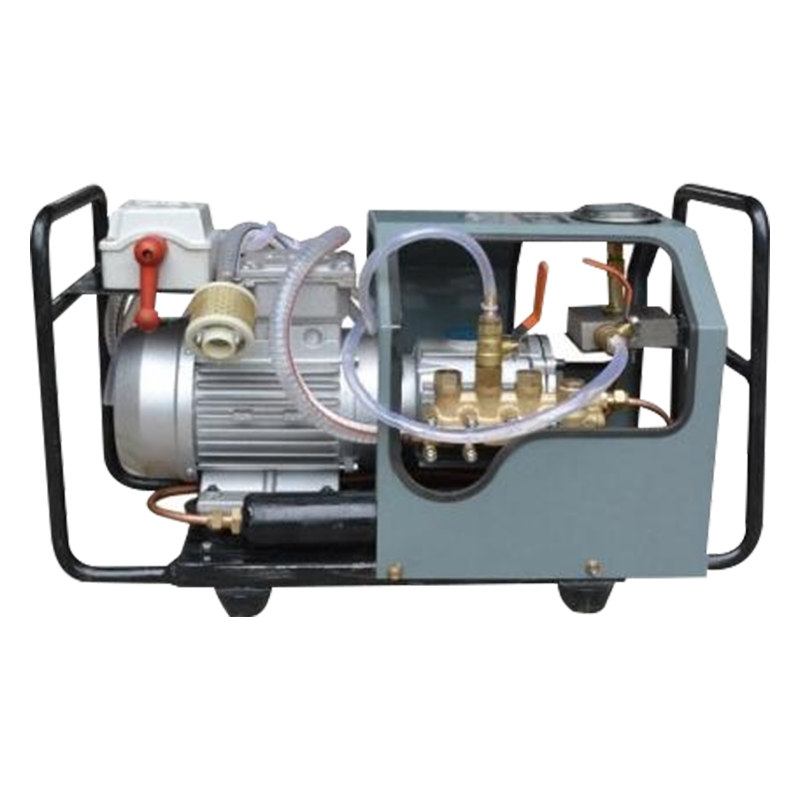

LB-7X10 High-Pressure Electric Pump

The special high-pressure water pump specially designed by our factory for the belt vulcanizer is a three-cylinder plunger pump driven by a single-phase or three-phase motor.
The plunger of the pump is manufactured with high-tech technology, and a high-hardness alloy layer is sprayed on the surface of the stainless steel plunger body, which has excellent wear resistance, and the service life of the plunger and the sealing ring is doubled. The performance of the whole machine is stable and reliable. Therefore, the medium (clean water) used must be kept pure and clean.

Get a Quote

PREV：TX-K90 Portable Electric Pump
NEXT：No next article

Product Advantage

Using electric heating blanket heating method, the overall temperature distribution of the heating plate is more even, and it is lighter and thinner than the traditional heating plate.
The heating plate sockets all use special heavy-duty connectors to ensure the transmission of signals and power supply and the safety of electricity consumption.
The pressurizing system uses a water pressure bag made of pure rubber, which is light in weight, resistant to high pressure, has good sealing performance and there is no pressure leakage overall.
Pressurized beams have the characteristics of bending resistance, torsion resistance, fatigue resistance, light weight and corrosion resistance. The matching terminal bolts are equipped with safety protection, accurate positioning and compact installation size.

Product Advantage

Rated discharge pressure	Theoretical fow	Pump speed	Working medium	Matching motor	Three-phase motor	Lubricating oil	Machine weight	Dimensions (length×width×height)
4Mpa	8L/min	2800r/min	Clean water	1.1KW	50HZ380V	30 or more 40 oil 0.87L	23kg	560×250×395(mm)

WE ARE A CONVEYOR BELT VULCANIZATION EQUIPMENT MANUFACTURER.

Jiangyin Tongxin Vulcanizing Machine Manufacturer Co., Ltd.

Jiangyin Tongxin Vulcanizer Factory (formerly known as Jiangyin Vulcanizer Factory) is located in the picturesque Jiangyin Golden Triangle Development Zone in the northern part of Wuxi City, founded in 1984. The company occupies an area of 21,000 square meters and has 56 employees, including 15 engineering and technical personnel.
As a famous China LB-7X10 High-Pressure Electric Pump Suppliers and LB-7X10 High-Pressure Electric Pump Factory, we specialize in the production of DGLJL type electric heating belt vulcanizers, DJSL type electric heating water-cooled belt vulcanizers, and related vulcanizer accessories. Our products' main technical and quality indicators are close to the international advanced level, having passed provincial-level appraisal, and strictly implement the ISO 9001:2015 quality management system standards. Our products are popular throughout the country, having been awarded the title of "City Quality Product" for three consecutive years, and the company has been recognized as a "Contract-abiding and Credit-worthy Enterprise" for five consecutive years. Additionally, the company is equipped with a complete set of specialized equipment for vulcanizer production, tooling fixtures, testing equipment, and a comprehensive quality assurance system.
