DJSL/DGLJL Water-Cooled Light Vulcanizing Machine

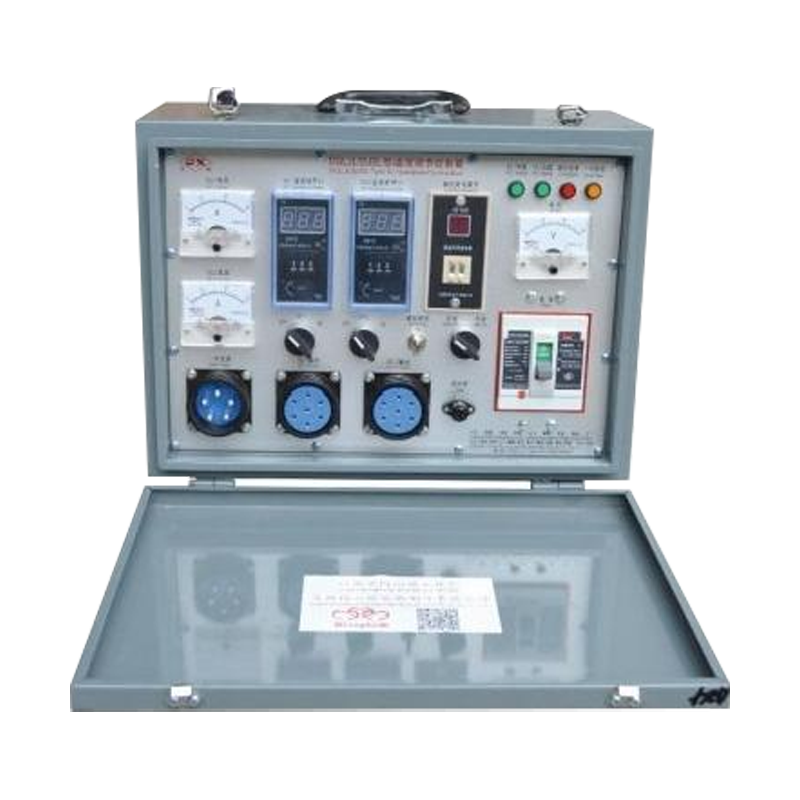

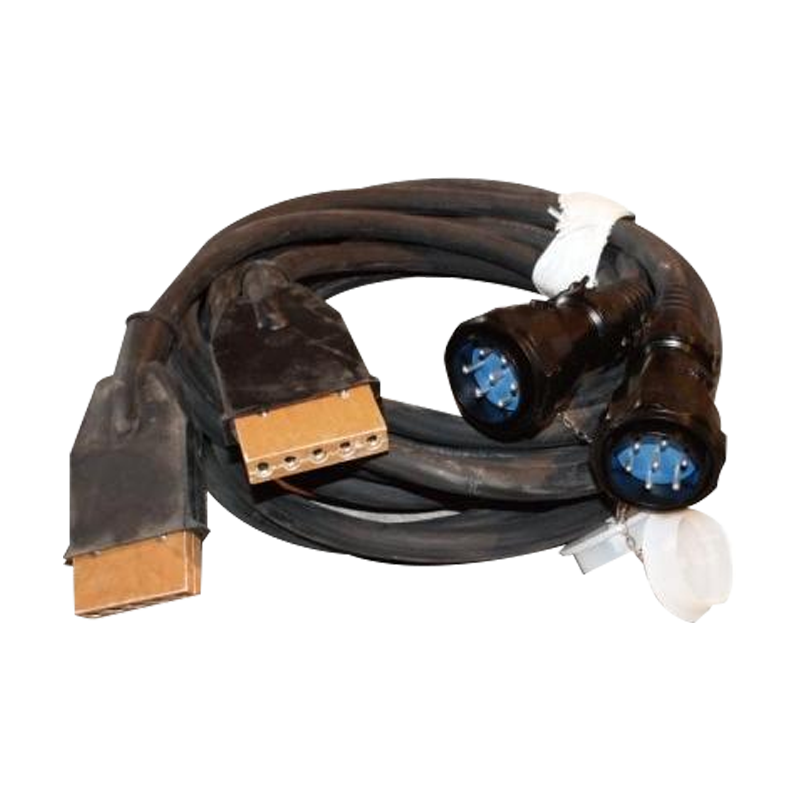

The equipment is small in size and light in weight. It is powered by ordinary three-phase power supply. The temperature of the hot plate is uniform. The water pressure system supplies uniform pressure (1.0~2.0mpa). It is equipped with a light automatic electric control box. The connection between the electric control box and the host is completed by an integrated plug-in and a multi-core cable. It is easy to operate and reliable. It is currently widely used in metallurgy, mining, power plants, ports, building materials, chemicals and other places where there is no explosive gas and harmful gas that can corrode metals. The on-site vulcanization and bonding of canvas, nylon, and steel rope core transport tapes are also suitable for vulcanization joints of special performance tapes such as anti-corrosion and heat-resistant. And as long as the equipment uses ordinary tap water on site, it can quickly cool the heating plate after vulcanization. It can greatly improve efficiency and improve the quality of tape joints. Generally, it takes 20 minutes to cool from the vulcanization temperature to 60℃, and the cooling water source pressure is ≥0.2mpa.
The quality of the tape joint directly affects the working efficiency and service life of the tape, especially for long-distance and high-strength conveyor belts. Therefore, the DGLJL electric heating tape vulcanizer is an ideal auxiliary equipment in the current tape conveyor machinery.
The water-cooled vulcanizer has a light structure and can be moved by ordinary labor. Before installation, the convenience of power supply and water source should be considered. Use a special water pipe to connect the tap water to the cooling water pipes of the upper and lower heating plates of the vulcanizer, but do not drain the water for the time being. At this time, start the constant temperature until the vulcanization constant temperature time ends. At this time, turn on the tap water and pass water to the hot plate. When the temperature drops to the process stable value, you can drain the water and disassemble the equipment, and the vulcanization operation is completed.
