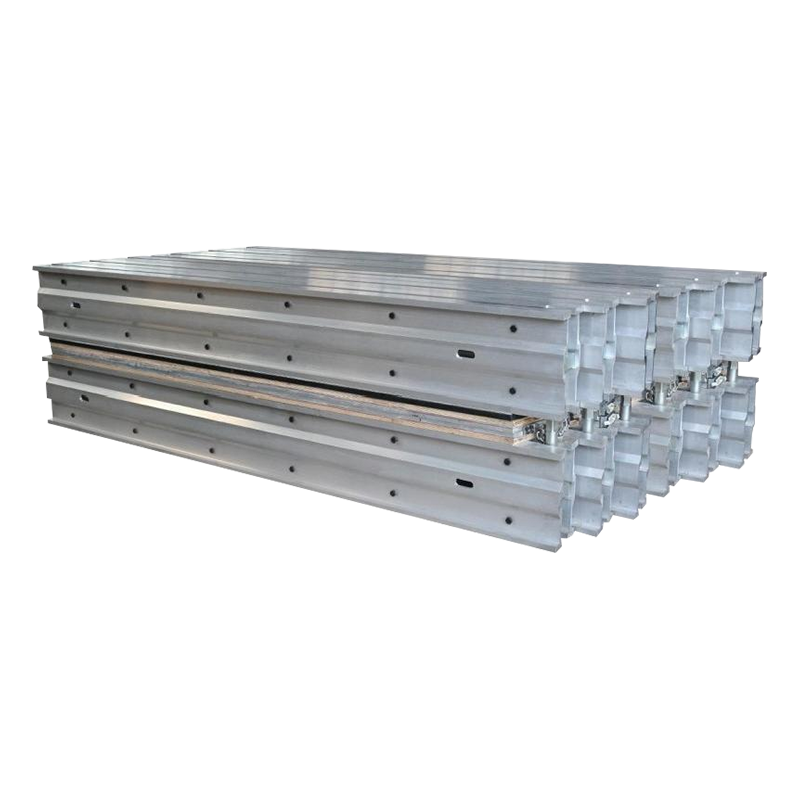

TXCK Electric Blanket Type Water-Cooled Vulcanizing Machine

TXCK electric water-cooled vulcanizing machine is a high-end vulcanizing machine developed by our company's technical team by learning and absorbing the technical experience of advanced vulcanizing machines at home and abroad. It has the following significant advantages:

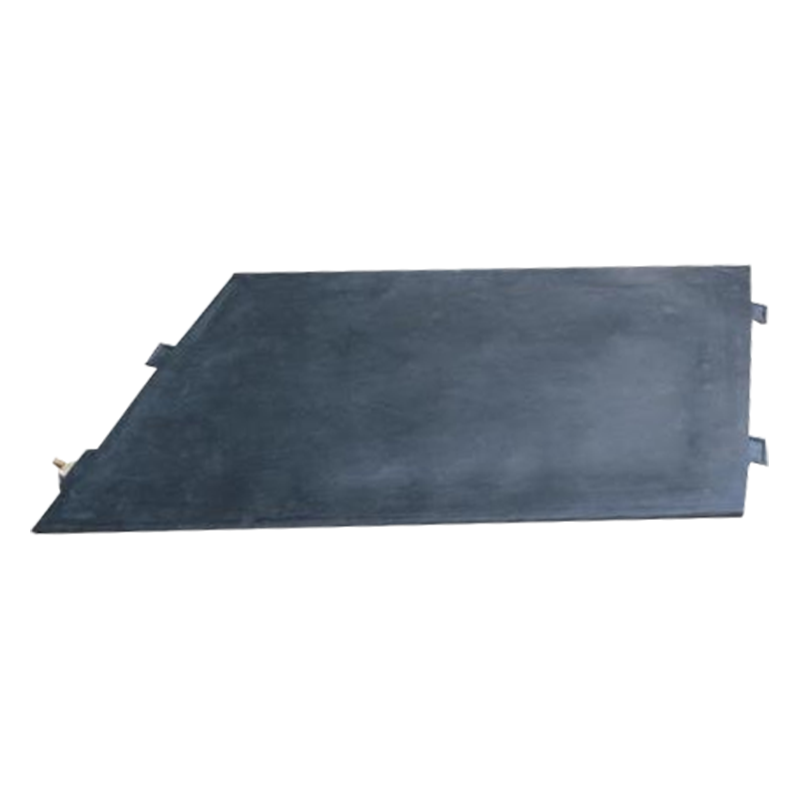

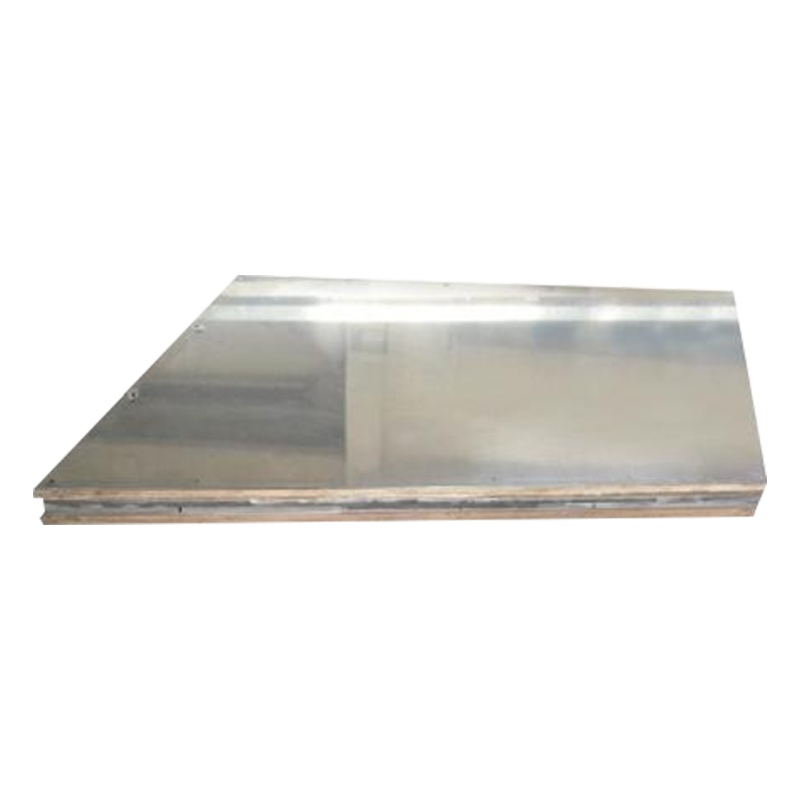

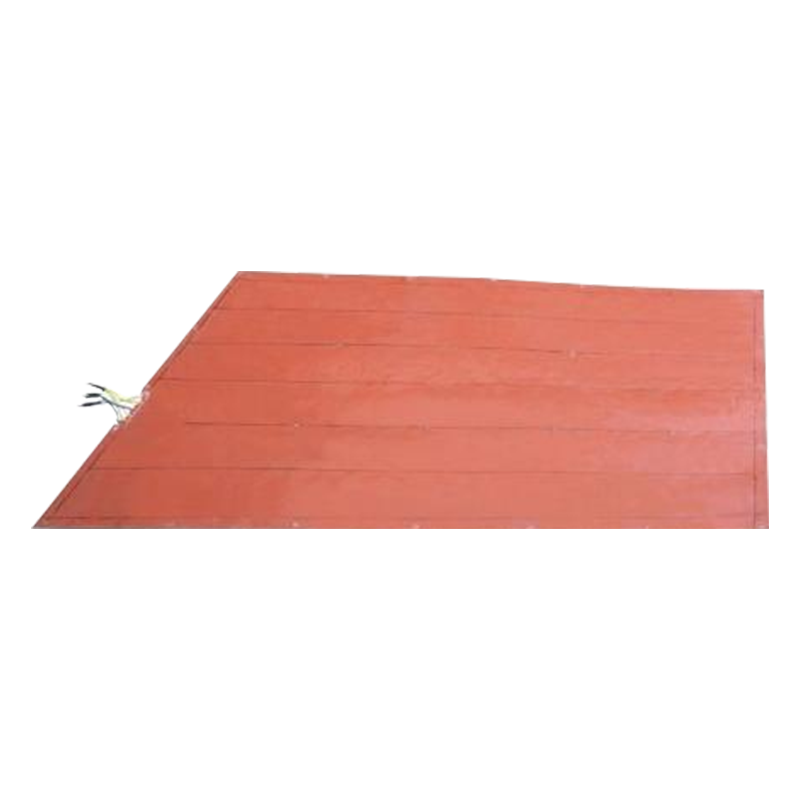

1: Using electric heating blanket heating method, the overall temperature distribution of the heating plate is more even, and it is lighter and thinner than the traditional heating plate.

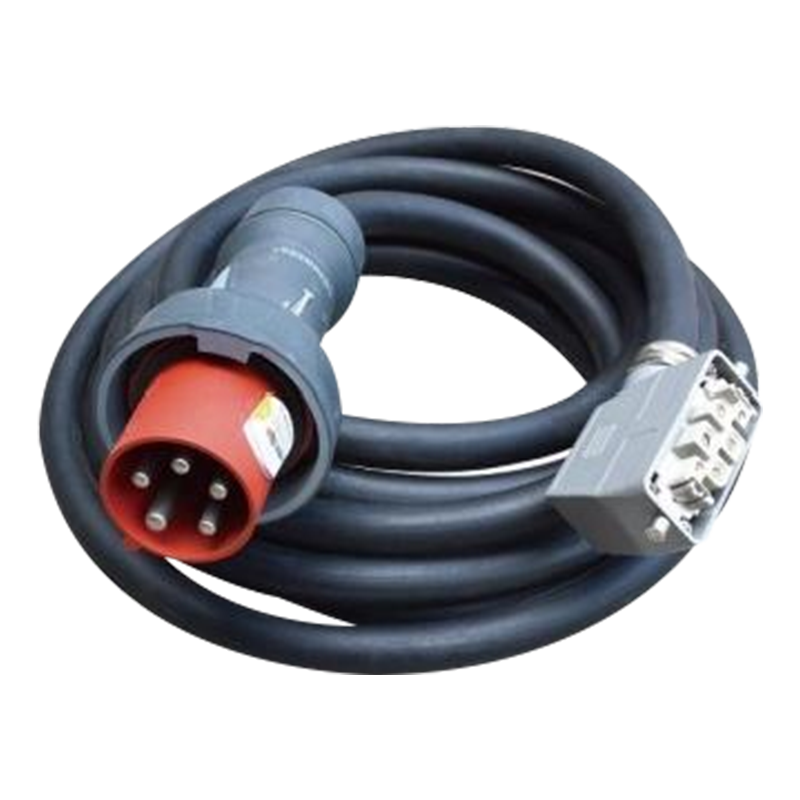

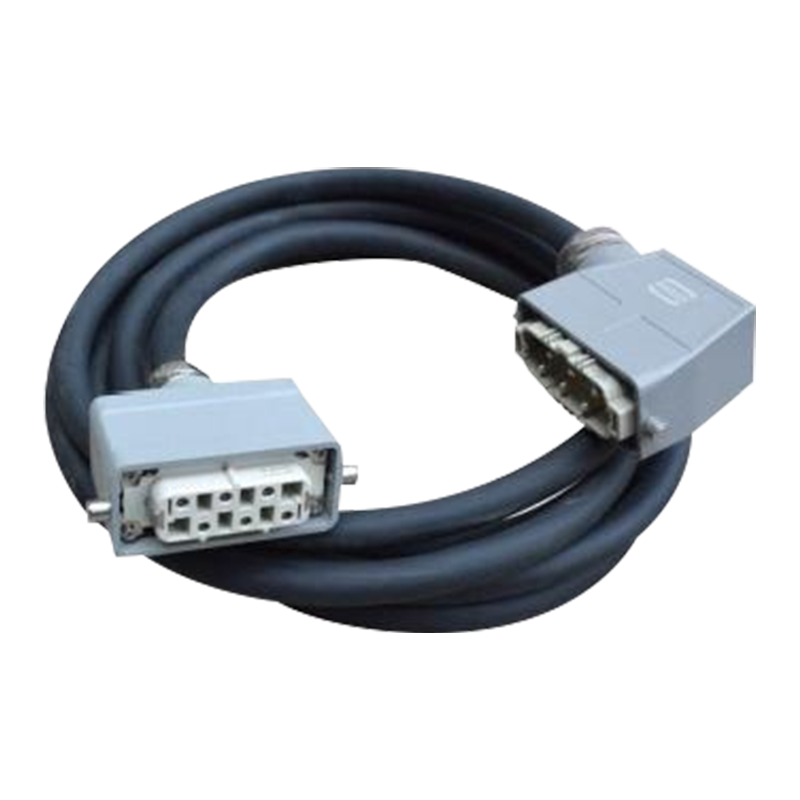

2: The heating plate sockets all use special heavy-duty connectors to ensure the transmission of signals and power supply and the safety of electricity consumption.
3: The pressurizing system uses a water pressure bag made of pure rubber, which is light in weight, resistant to high pressure, has good sealing performance and there is no pressure leakage overall.

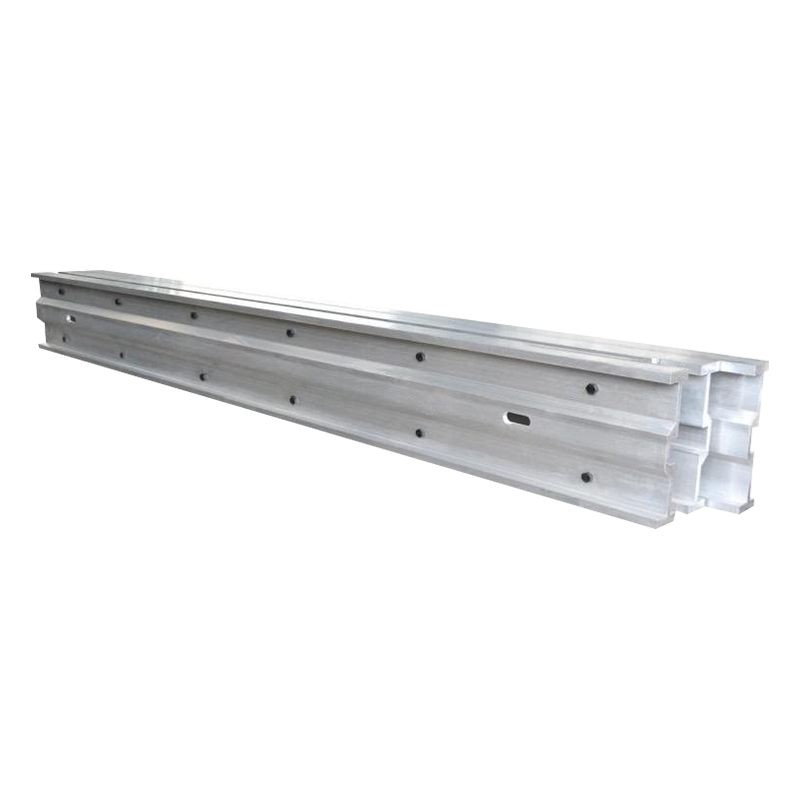

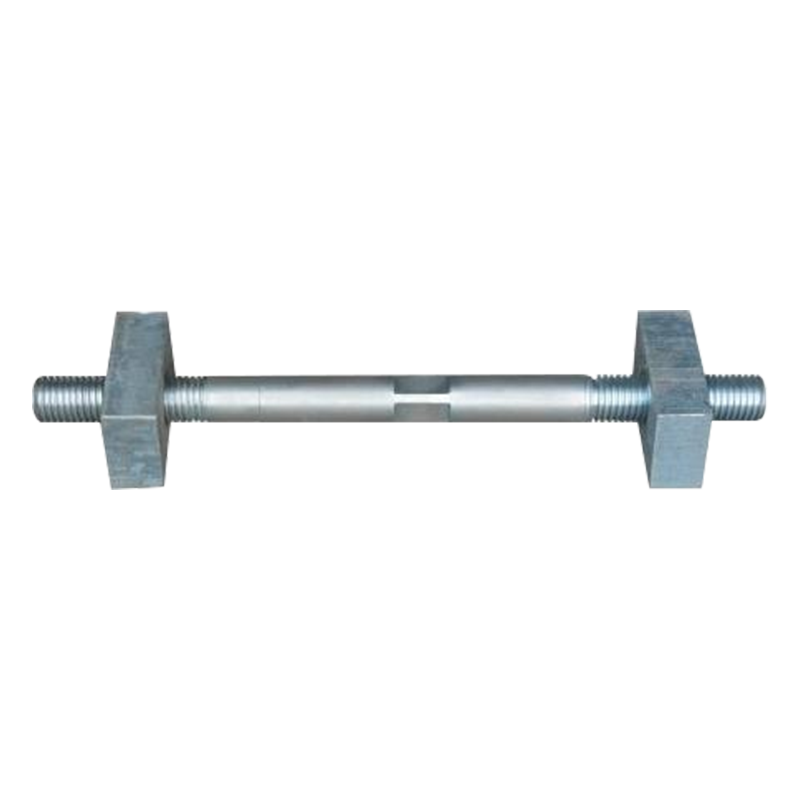

4: Pressurized beams have the characteristics of bending resistance, torsion resistance, fatigue resistance, light weight and corrosion resistance. The matching terminal bolts are equipped with safety protection, accurate positioning and compact installation size.

Get a Quote

PREV：DJSL/DGLJL Water-Cooled Light Vulcanizing Machine
NEXT：No next article

TXCK Electric Blanket Type Water-Cooled Vulcanizing Machine

Product Advantage

Using electric heating blanket heating method, the overall temperature distribution of the heating plate is more even, and it is lighter and thinner than the traditional heating plate.
The heating plate sockets all use special heavy-duty connectors to ensure the transmission of signals and power supply and the safety of electricity consumption.
The pressurizing system uses a water pressure bag made of pure rubber, which is light in weight, resistant to high pressure, has good sealing performance and there is no pressure leakage overall.
Pressurized beams have the characteristics of bending resistance, torsion resistance, fatigue resistance, light weight and corrosion resistance. The matching terminal bolts are equipped with safety protection, accurate positioning and compact installation size.

Product Advantage

Model Adhesive/ Data/ Project	Adhesive tape width (mm)	Specification	Heating plate size Lengthxwidth (mm)	Tota Power (kw)	Heavy Weight (kg)	Dimensions Length×Width×Height (mm)	Tota Weight (kg)	Configuring device

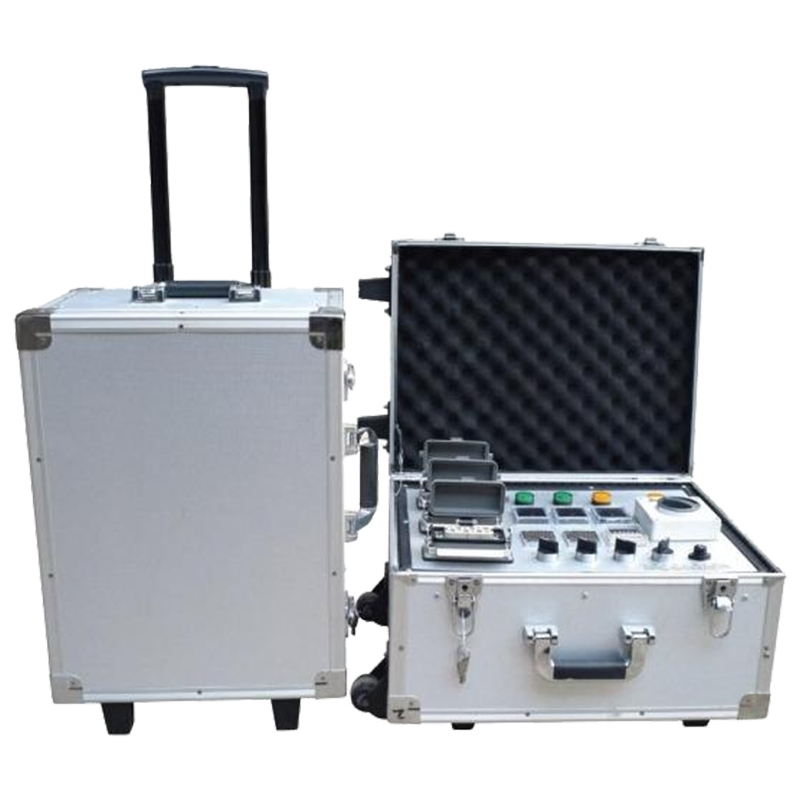

Model Adhesive/ Data/ Project	Adhesive tape width (mm)	Specification	Heating plate size Lengthxwidth (mm)	Tota Power (kw)	Heavy Weight (kg)	Dimensions Length×Width×Height (mm)	Tota Weight (kg)	Manua pump	Electric contro box
TXCK-650	650	650×830	830×820	9.8	56	1320×830×585	398	1	1
TXCK-650	650	650×1000	1000×820	11.8	66	1320×1000×585	460	1	1
TXCK-800	800	800×830	830×995	11.89	70	1450×830×585	485	1	1
TXCK-800	800	800×1000	1000×995	14.4	79	1450×1000×585	550	1	1
TXCK-1000	1000	1000×830	830×1228	14.7	82	1700×830×585	556	1	1
TXCK-1000	1000	1000×1000	1000×1228	17.8	95	1700×1000×585	596	1	1
TXCK-1200	1200	1200×830	830×1431	17.2	96	1950×830×750	784	1	1
TXCK-1200	1200	1200×1000	1000×1431	20.7	113	1950×1000×750	900	1	1
TXCK-1400	1400	1400×830	830×1653	19.8	107	2150×830×900	857	1	1
TXCK-1400	1400	1400×1000	1000×1653	23.9	132	2150×1000×900	1080	1	1
TXCK-1600	1600	1600×830	830×1867	22.3	120	2380×830×900	1102	1	1
TXCK-1600	1600	1600×1000	1000×1867	27	146	2380×1000×900	1400	1	1
TXCK-1800	1800	1800×830	830×2079	24.9	137	2620×830×900	1247	1	1
TXCK-1800	1800	1800×1000	830×2079	30	164	2620×1000×900	1500	1	1
TXCK-2000	2000	2000×830	830×2303	27.6	154	2830×830×900	1385	1	1
TXCK-2000	2000	2000×1000	1000×2303	33.2	182	2830×1000×900	1750	1	1
TXCK-2200	2200	2200×830	830×2478	29.7	165	2997×830×900	1446	1	1
TXCK-2200	2200	2200×1000	1000×2478	35.8	198	2997×1000×900	1800	1	1
